Musannatech Electric Vehicle(EV) Bolan

Electric Vehicle(EV) Bolan

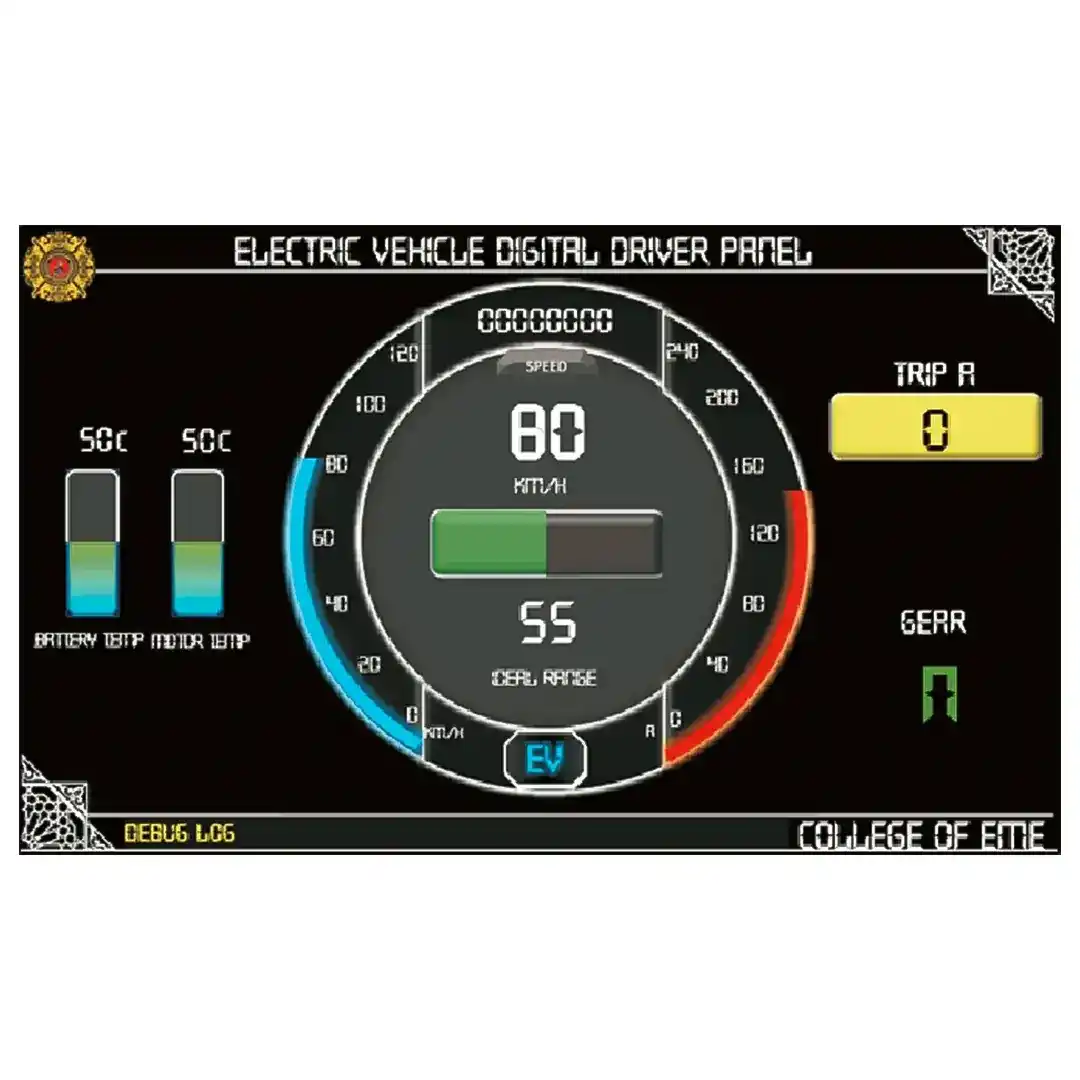

The project involved retrofitting of electric motor in lieu of engine, redesigning of drive train, integration of LiFePO4 battery pack and design of Digital Display Panel. Motor is fitted directly with differential gear box through a propeller shaft. With the integration of 20kW motor, battery pack of 20kWh; a range of 200km with 80kmph speed has been achieved

Key Features

  • Motor Power: 20 KW
  • Battery Pack Voltage: 96 V
  • Battery Pack Capacity: 20 kWh
  • Seating Capacity: 6
  • Max Speed: 80 kmph
  • Designed Range: 200 km
  • Battery Type: LiFeO4

Vehicle has been tested for over 30,000 kms in new design configuration.
